SKU:
FCAR-021-F4N
Price:
$3,795.00
CAPTCHA
This question is for testing whether you are a human visitor and to prevent automated spam submissions.
2 + 1 =
Solve this simple math problem and enter the result. E.g. for 1+3, enter 4.

In Stock (will ship in 1-2 days). Save $300 by Coupon Code 4NSAVE

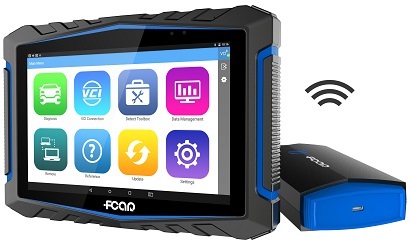

The F4-N HD Commercial Pad is a professional diagnostic compact tablet version of scan tool for North American heavy duty, supper duty, medium duty and light duty trucks repair and fleet maintenance professional. The tool will scan and diagnose class 1-9 engine, transmission, Brake and body control units and it has more vehicle coverage and more bidirectional functions for on-highway trucks and off-highway utility vehicles. The scanner quickly responds and easily scans and tests the trucks variety components and resets vehicle data, and analyze all sensors live data stream. It does auto scan all the components supporting J1708, J1939, and special protocol covered by the auto OEM manufactories.

Features:

  • Tablet compact design
  • Fast response (boot in 5s, scan in few seconds) and ease to use (simplified menu)
  • All trucks coverage and more functionalities (diagnostic and reset/bidirectional functions)
  • Lower maintenance
  • Plug-N-Play
  • 8 inch touch screen
  • Direct Wi-Fi update
  • Auto diagnostic report in PDF or excel format

Product details

  • Shipping weight: 18 pounds
  • Shipping dimension: 21"x16"x6"
  • Shipping: This item is available for shipping to inside the U.S.A..
  • SKU/PN: FCAR-021-F4N

Hardware specification:

System Android 7.0 Multitask Operating System
Processor MT8783 8-core , 13GHz Cortex-A53 processor
Display IPS  8 Resolution：800*1280
Touch screen 8-inch 5-point capacitive screen G+G Hardness 7H or more, scratch-resistant, TP thickness:1.1mm，COF
RAM 3GB RAM & 64GB ROM, Also supports extendable 128GB TF memory card
Connection WiFi & Bluetooth 2.0/4.0
Camera Rear 13 megapixels, flashing light
Interface HDMI HD interface, USB2.0, Type-C USB, TF slot, power interface
Size 232mm*159mm*27mm
Power DC 12V/3A
Temperature 0℃ to 40℃
Storage temperature -20℃ to 60℃
Battery life 4-6 hours with full charge

Diagnostic functions:

  • Scan system information
  • Scan/clear DTCs
  • Display/analyze all sensors live data stream (chart mode)
  • Actuation test

Advanced functions:

  • Cylinder cutout
  • Injector Programming
  • DPF forced regen & aftertreatment, SCR/DEF reset
  • Bidirectional parameters reset and adjustment
  • Oil change reset
  • Maintenance light reset

Coverage:  On-road commercial vehicles

  • Engines: Caterpillar, Cummins, Detroit, DuraMax, Mitsubishi Fuso, Hino, Isuzu, International, John Deere, Mack, Mercedes, Nissan UD, Perkins, Powerstroke, Sprinter, Volvo
  • Transmissions: Allison, Eaton, ZF
  • ABS and brakes: Bendix, Wabco, Wabash, Haldex
  • Body/Chassis: Caterpillar, Chevrolet, Dodge, Ford, Freightliner,  Fuso, GM, GMC, Hino, International, Isuzu, Kenworth, Mack/Volvo, Nissan UD, Peterbilt, Sprinter,  Sterling, Thomas Built,  Western Star.
  • Pickup (or Van): Silverado, Coronado, Ford (F150-750), Ford E-series, Dodge RAM 1500-5500, GMC, GM, Sprinter
  • Commercial coach bus
  • HD Trucks: Freightliner, Autocar, CCC, Fuso, GMC truck, Hino, International, Isuzu, Kenworth, Mack, Nissan UD, Peterbilt, Pierce, Sterling, Western Star, Volvo

Coverage: Off-road equipment: Bobcat, Case, Caterpillar,  Claas, Cummins, Detroit, Doosan, Duetz, Hino, Hitachi, Hyundai, Isuzu,John Deere, Kobelco, Komatsu, Kubota, Liebherr, Mercedes, New Holland, Perkins, Sumitomo, Terex, Volvo, Yanmar

Coverage: Domestic passenger car [bonus pack]: Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Lincoln, Jaguar, Jeep, Pontiac, Saturn

All vehicles via OBD II (16Pin) and Diesel OBD (Diesel 6 or 9pin): The generic OBD II program will do emission related, and Diesel OBD global program will has proprietary reading

  • Scan/clear generic fault codes
  • Display/analyze all sensors live data stream (chart mode)

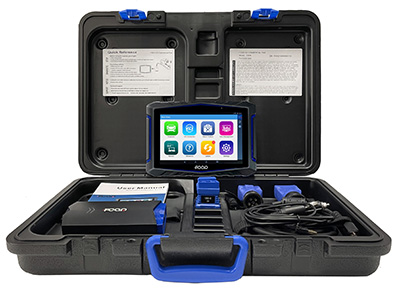

Retail package includes:

  1. Main tablet unit
  2. VCI interface-FV100
  3. Main cable DB15 to OBD16 3 feet
  4. 6 Pin Diesel adapter
  5. 9 Pin Diesel adapter (covering J1939 type 1 and type 2)
  6. One year hardware manufactory warranty and one year software updates

All others connectors are available to order separately.

The following adapter may not be included in standard package. Call us 443-380-0088 to order when you need.

 P/N Cables and adaptors Pictures
FCAR-030-009 3 feet DB15 to OBD16 Main Cable Click to view picture
FCAR-030-001 6 Feet DB15 Main Cable for F3/3S/5/6/7 Click to view picture
FCAR-030-009 3 feet DB15 to OBD16 Main Cable for F7S, F506, F606, F3S Click to view picture
FCAR-031-CBY Chrysler 8+12 by pass cable Click to view picture
  Heavy duty truck adaptors
FCAR-020-9C2 Diesel 9 Type 2 Twist Lock Extension
FCAR-032-D06 Diesel 6 J1708 Adaptor -Blue Click to view picture
FCAR-030-D69 Diesel 6/9 Type 1 Adaptor Click to view picture
FCAR-017-692 Diesel 6/9 Type 2 Adaptor Click to view picture
FCAR-017-006 F7 6-Pin Deutsch (blue) Click to view picture
FCAR-019-9P2 F7 Series Diesel-9 Type 2 (blue)
FCAR-030-HI6 Hitachi-6 Connector Click to view picture
FCAR-030-HI4 Hitachi-4 Connector Click to view picture
FCAR-030-D09 Diesel 9 Type 1 Adaptor-Cummins
FCAR-030-D06 Diesel 6 Adaptor-Cummins
FCAR-030-D12 Denso-12 Connector
FCAR-030-I30 Iveco-30 Connector
FCAR-030-I38 Iveco-38 Connector
FCAR-030-M14 Benz-14 Connector
FCAR-030-M37 MAN-37 Connector
  Off road equipment adaptors
FCAR-034-PLC PLC trailor adaptor
FCAR-034-D12 Duetz 12 engine adapter Click to view picture
FCAR-030-JC8 JCB 8 pin adaptor Click to view picture
FCAR-030-K4P Kubota 4 pin adaptor Click to view picture
FCAR-037-C3P Cummins equipment cable (3pin) (male and female, two adaptors) Click to view picture
FCAR-037-C3F Cummins equipment cable (3pin) female only Click to view picture
FCAR-037-C3M Cummins equipment cable (3pin) male only Click to view picture
FCAR-032-J01 Jumper Box Kit Click to view picture
FCAR-032-J02 Jumper kit version 2 with OBD16 Click to view picture
FCAR-030-VO8 Volvo 8 Offload Connector Click to view picture
FCAR-030-C09 Caterpillar 9 Connector-off road equipment Click to view picture
FCAR-030-C14 Caterpillar 14 Connector click to view picture
FCAR-030-K12 Komatsu 12 Connector Click to view picture
FCAR-030-C16 OBD Round 16
FCAR-030-HYD Hyundai Diesel Connector
  OBD1 adaptors
FCAR-031-B38 Benz-38 Connector
FCAR-031-HA3 Honda-3 Connector
FCAR-031-K20 KIA-20 Connector
FCAR-031-M16 Mitsubishi 16 Connector
FCAR-031-MI3 Marelli-3 Connector
FCAR-031-N14 Nissan-14 Connector
FCAR-031-M10 Mitsubishi 10 Connector
FCAR-031-B20 BMW-20 Connector
FCAR-031-G12 GM/Daewood-12 Connector
FCAR-030-I20 Isuzu-20 Connector
FCAR-030-I03 Isuzu-3 Connector
FCAR-030-019 OBD II 16 Connectors-Blue
FCAR-030-016 OBD II 16 Connectors
FCAR-001-ST0 Selt-Test Connector
FCAR-001-ST1 Selt-Test Connector -Blue
FCAR-017-P03 F7S Power AC Charger (12v)
FCAR-017-P02 F6 Plus Power AC Charger (5V)
FCAR-032-P01 F3/5/7 AC Power Adaptor (12V)
FCAR-032-P02 Cigarette Power Cable
